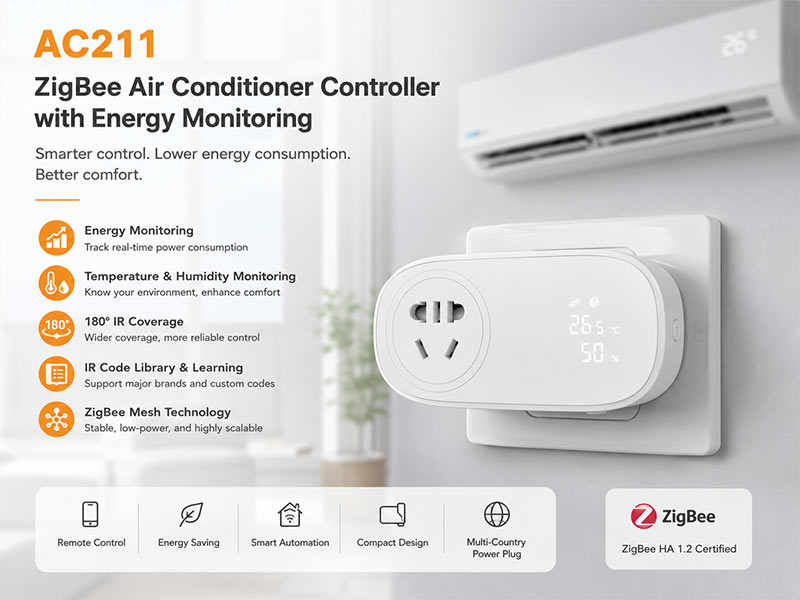

ZigBee Air Conditioner Controller (for Mini Split Unit)AC211

Main Feature:

The Split A/C control AC211 converts the home automation gateway’s ZigBee signal into an IR command so as to control the air conditioner in your home area network. It has pre-installed IR codes used for main-stream split air conditioners. It can detect room temperature and humidity as well as the power consumption of the air conditioner, and display the information on it’s screen.

Model: AC211

Item Dimension: 68(L) x 122(W) x 64(H) mm

Fob Port: Zhangzhou, China

Payment Terms: L/C,T/T

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Tech Specs

video

Product Tags

▶ Main Features:

• Converts home automation gateway’s ZigBee signal into IR command so as to control the split air conditioners in the home area network.

• All-angle IR coverage: cover 180° of the target area.

• Room temperature and humidity display

• Power consumption monitoring

• Pre-installed IR code for main stream split air conditioners

• IR code study functionality for unknown brand A/C devices

• Switchable power plugs for various country standards: US, EU, UK

▶ Product:

▶Application:

▶ Video:

▶ Package:

shipping

Previous: ZigBee Gateway (ZigBee/Ethernet) X1

Next: WiFi Touchscreen Thermostat (US) PCT513

▶ Main Specification:

Wireless Connectivity		ZigBee 2.4GHz IEEE 802.15.4 IR
RF Characteristics		Operating frequency: 2.4GHz Internal PCB Antenna Range outdoor/indoor: 100m/30m TX Power: 6~7mW(+8dBm) Receiver sensitivity: -102dBm
ZigBee Profile		Home Automation Profile
IR		Infrared emission and receiving Carrier frequency: 15kHz-85kHz
Metering Accuracy		≤ ± 1%
Temperature		Range: -10~85° C Accuracy: ± 0.4°
Humidity		Range: 0~80% RH Accuracy: ± 4% RH
Power Supply		AC 100~240V (50~60Hz)
Dimensions		68(L) x 122(W) x 64(H) mm
Weight		178 g
